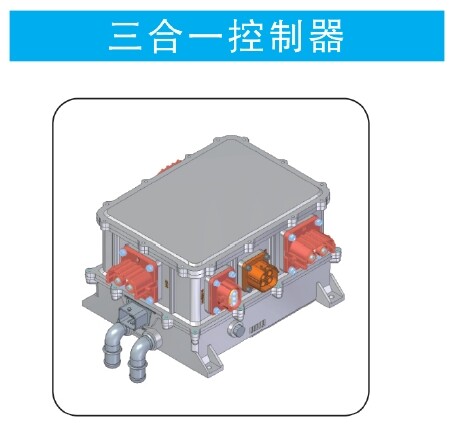

6.6KW Integrated Assembly Controller with 3C,CE,TUV,UL

First: OBC:
① DC output voltage range: 250-430VDC;
② DC output power: Maximum power 6600W;
③ Efficiency: Maximum efficiency >94%.

Second: DCDC:
① DC input voltage: input voltage range of 240V-420V;
② DC output voltage: DCDC is able to provide DC output voltage from 9V to 16V, and the rated output voltage is 13.8V;
③ DC output power: the rated full-load output power of DCDC converter is 2000W;
④ DC output current: the rated current of DCDC converter is 143A (corresponding to the rated voltage of 13.8V). (corresponding to the rated voltage of 13.8V);
⑤ Efficiency: Maximum efficiency >94%;

Third: PDU: with the function of controlling and diagnosing the high-voltage circuit switches, interlock detection function, can provide high-voltage on/off control channel for DCDC, air conditioning, PTC, slow charging (optional);

Fourth: . The system has a wide range of operating temperatures up to 40℃~+85℃;

Fifth: Storage temperature: -40℃~+85℃℃;

Sixth: Noise: <42dB;

Seventh: Cooling method: water-cooled heat dissipation;

Eighth:. Waterproof grade: IP67 or above;

Nineth: Communication standard: CAN2.0 500Kbps without terminal resistor; +, the product integrates OBC, DCDC, PDU and inverter functional components, suitable for pure electric/hybrid/boosted program automobile high-voltage and low-voltage power distribution system and product power storage energy storage system.
