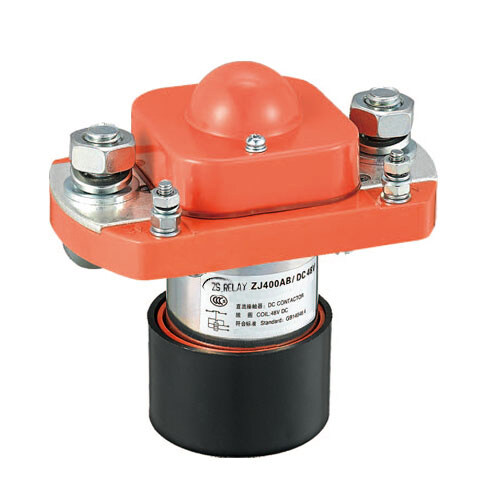

ZS400AB DC Contactor

Application

The pull-in time of 400a/48v DC contactor ZS400AB is ≤30 (ms), the release time is ≤50 (ms), the contact material is AgCuO (10)/Cu, the protection level is IP50, longer service life, stable structure, high performance excellent.

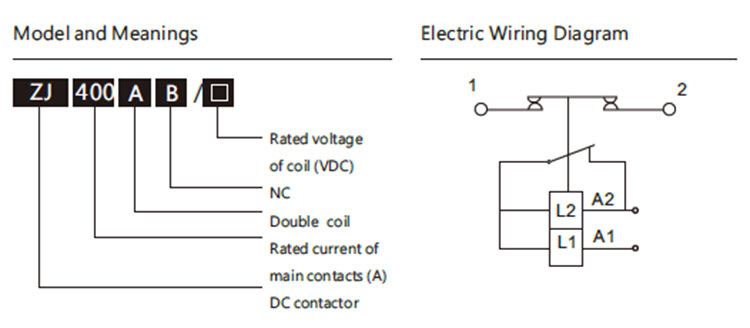

Ordering Notice

For example: ZS400AB/12V
The DC contactor of main contact is one NC, rated voltage not more than DC 80V, current 400A, coil
