ZS600AB DC Contactor

Application

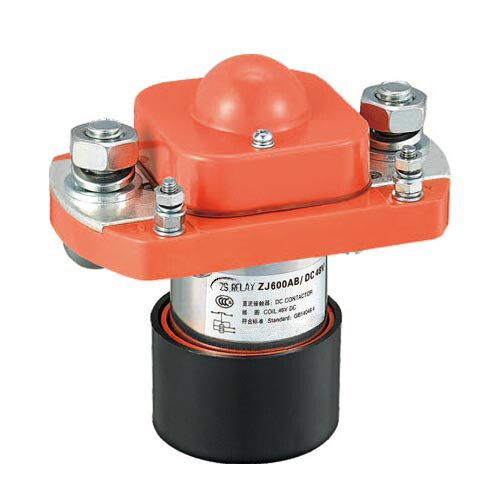

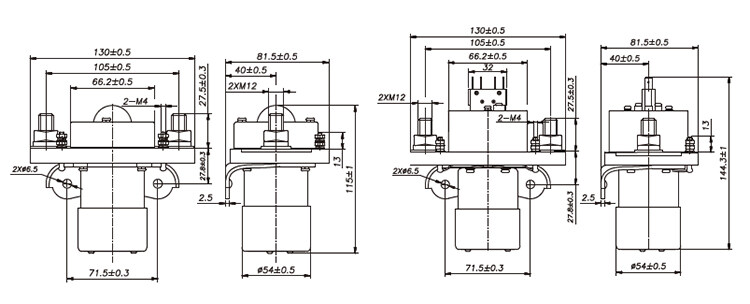

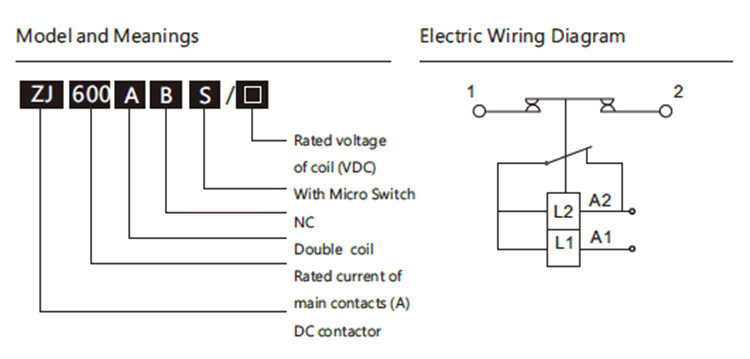

48V/600a DC contactor ZS600AB produced by Nanfeng Electric controls the current in the DC circuit by closing and opening internal contacts. The corresponding appearance installation diagram and electrical wiring diagram are provided.

Ordering Notice

For example: ZJ600AB/12V
The DC contactor of main contact is one NC,, rated voltage not more than DC 80V, current 600A, coil
